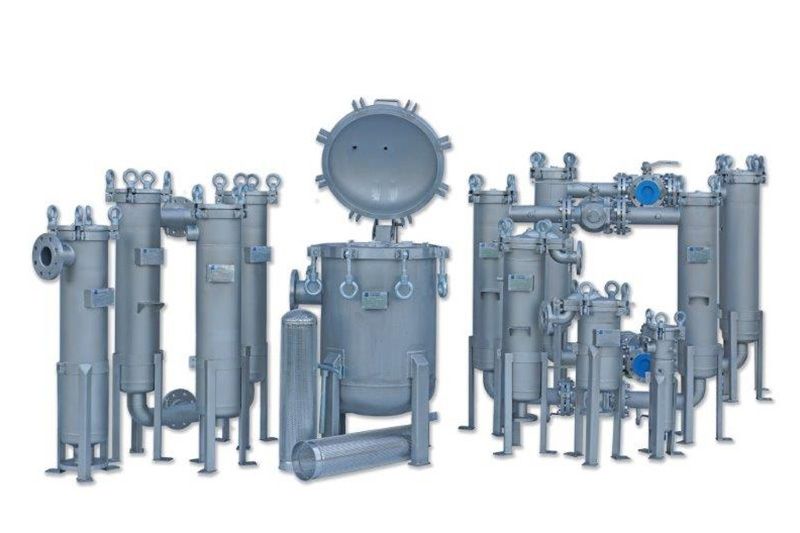

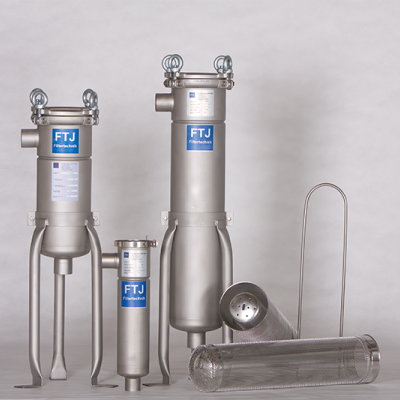

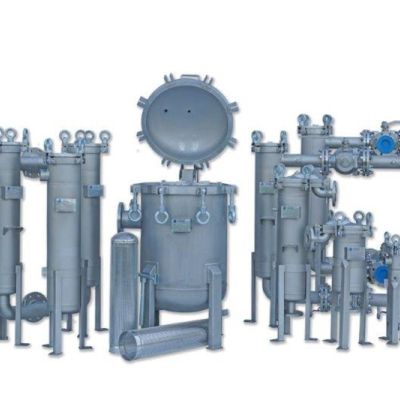

The filter bag housings of FTJ are characterized by robustness, corrosion resistance and their practical design. The pressure vessels have an inlet and an outlet and are easy to operate.

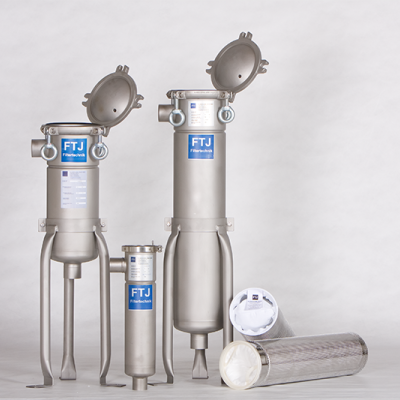

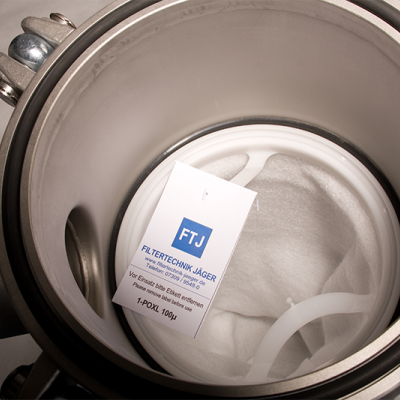

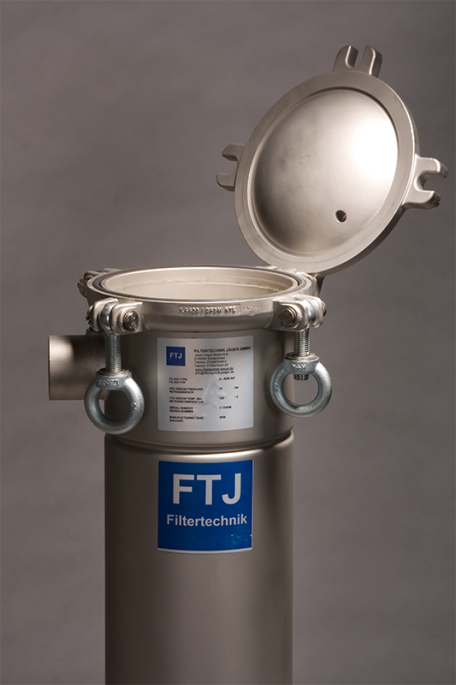

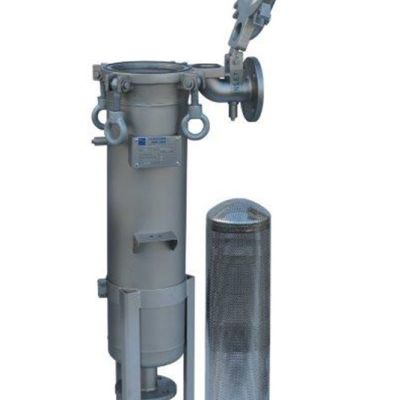

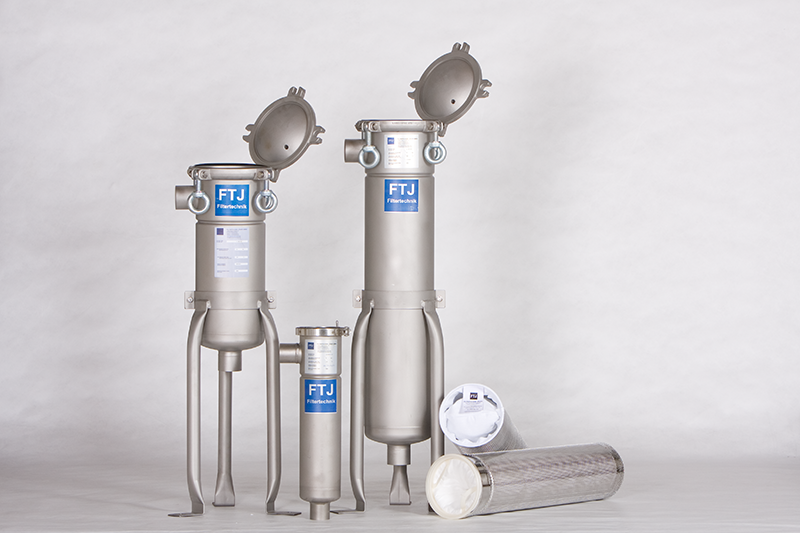

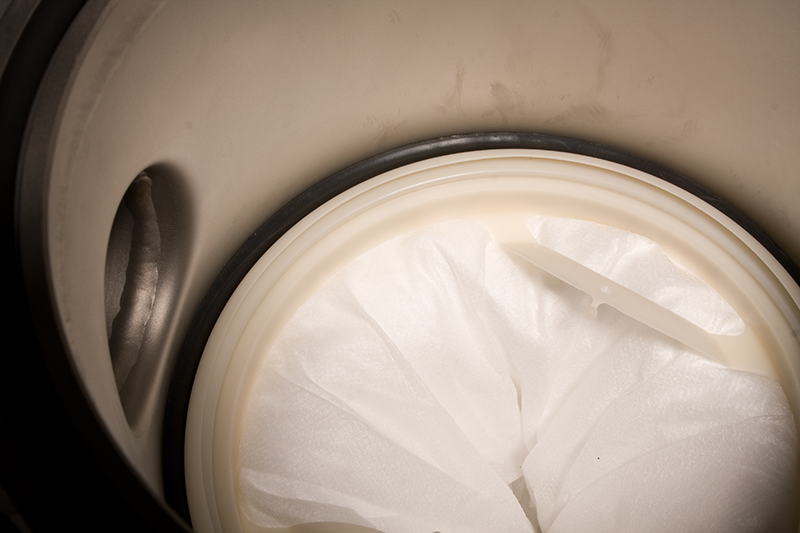

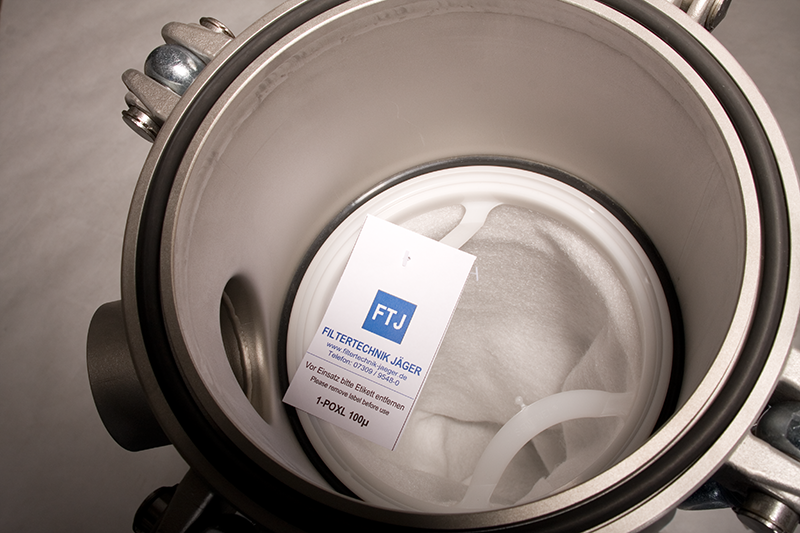

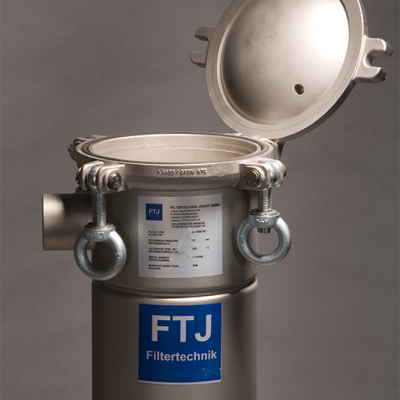

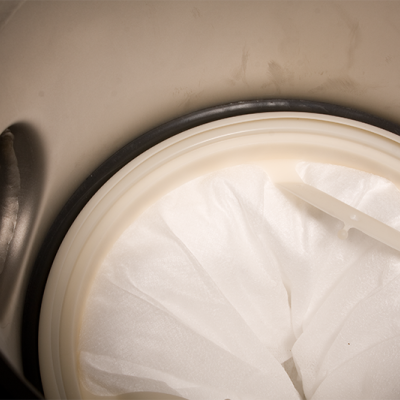

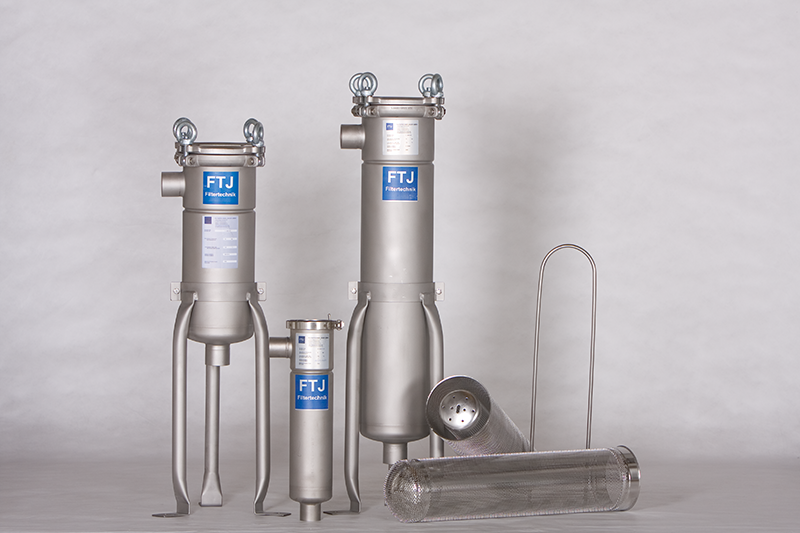

1 BGK R2“/DN 50
<td">Filterfläche:
| Gehäuse: | 1.4408 | 1.4571 |
| Druckaufnahmekorb: | 1.4571 | 1.4401 |
| Verschlußschrauben: | Stahl verzinkt | |
| Dichtungen: | Viton | |
| Anschlüsse: | R2“ Muffe/Flansch DN 50 | |
| Durchsatz: | max. 20 m³/h | |
| Betriebsdruck: | max. 10 bar | max. 15 bar |
| Betriebstemperatur: | max. 120° C | max. 30° C |
| 0,25 m² | ||
| Volumen: | 15,5 l |

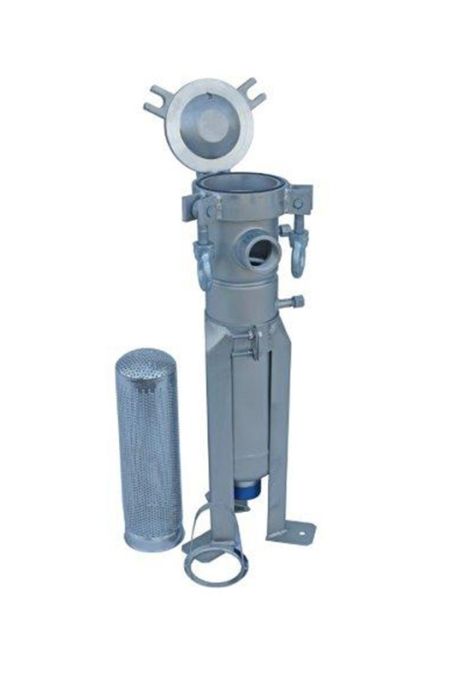

2 BGK R2“/DN 50
| Gehäuse: | 1.4408 | 1.4571 |
| Druckaufnahmekorb: | 1.4571 | 1.4401 |
| Verschlußschrauben: | Stahl verzinkt | |
| Dichtungen: | Viton | |
| Anschlüsse: | R2“ Muffe/Flansch DN 50 | |
| Durchsatz: | max. 36 m³/h | |
| Betriebsdruck: | max. 10 bar | max. 15 bar |
| Betriebstemperatur: | max. 120°C | max. 30° C |
| Filterfläche: | 0,5 m² | |
| Volumen: | 27 l |
The following questions help us find out as much as possible about your needs and define your enquiry.

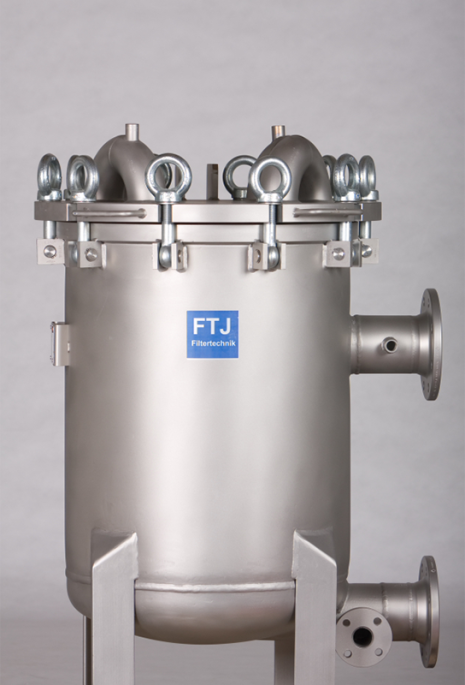

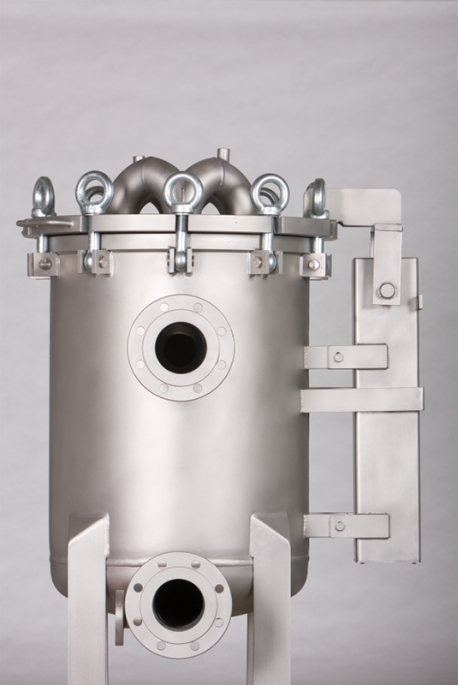

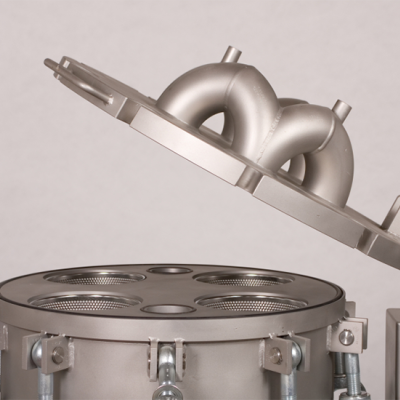

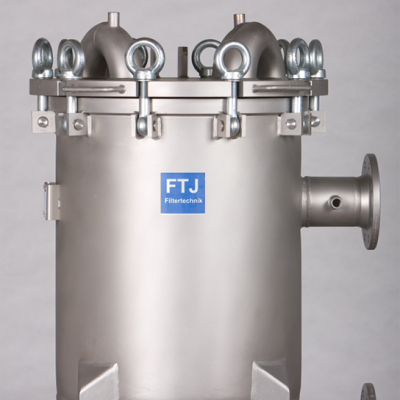

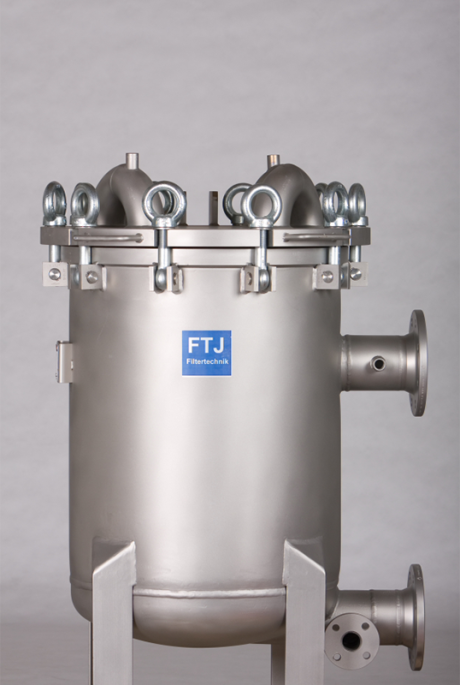

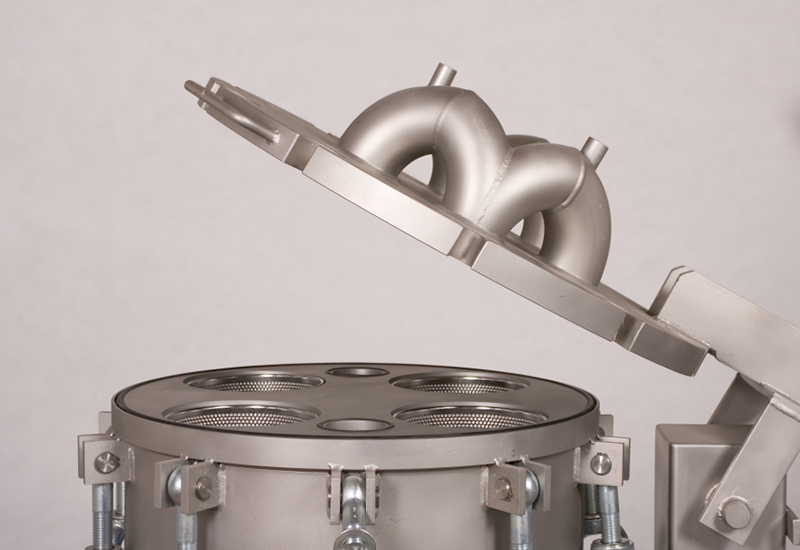

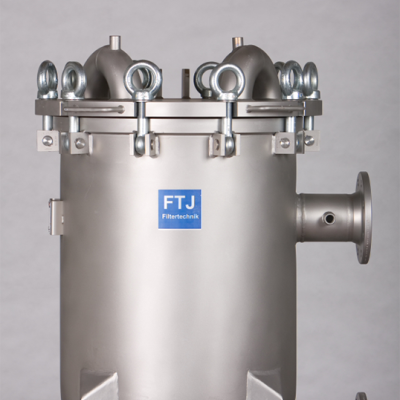

0402 BGK DN 100/DN 125 DH
| Housings: | 304 (1.4301) | 316Ti (1.4571) |
| Restrainer basket: | 1.4571 | 316Ti (1.4571) |
| Locking screws: | Steel zinc galvanized | |
| Seals: | EPDM | FPM |
| Inlet / Outlet: | Flange DN100/PN 10 | Flange DN 125/PN16 |
| Flow rate: | max. 100 m³/h | max. 150 m³/h |
| Operating pressure: | max. 7 bar | max. 10 bar |
| Operating temerature: | max. 60° C | max. 150° C |
| Filter area: | 2.0 m² | alt. 3 m² |
| Volume: | 185 L | 185 L |
| Weight: | ca. 250 kg | ca. 300 kg |

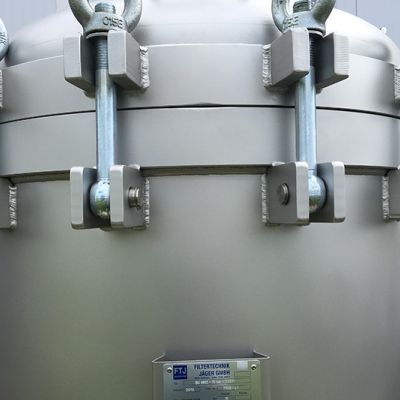

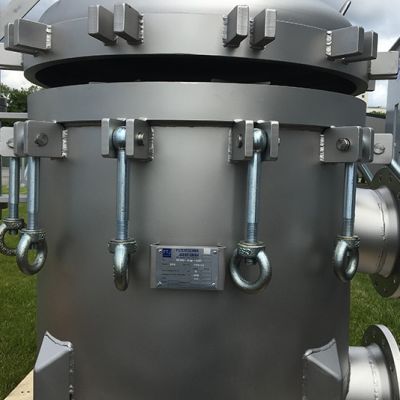

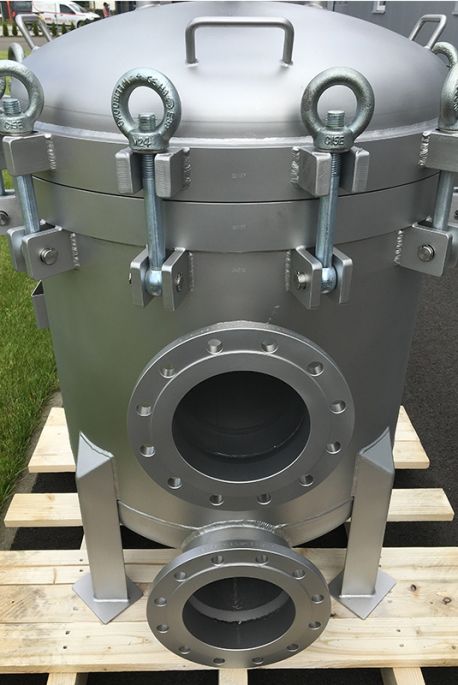

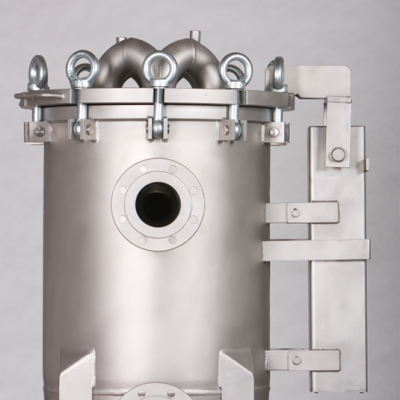

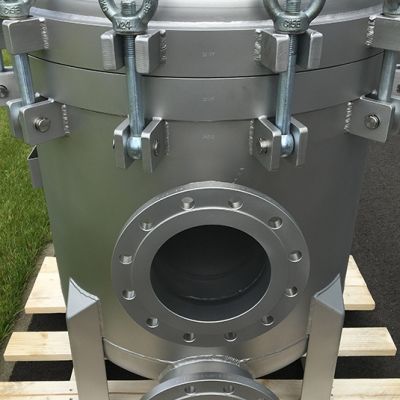

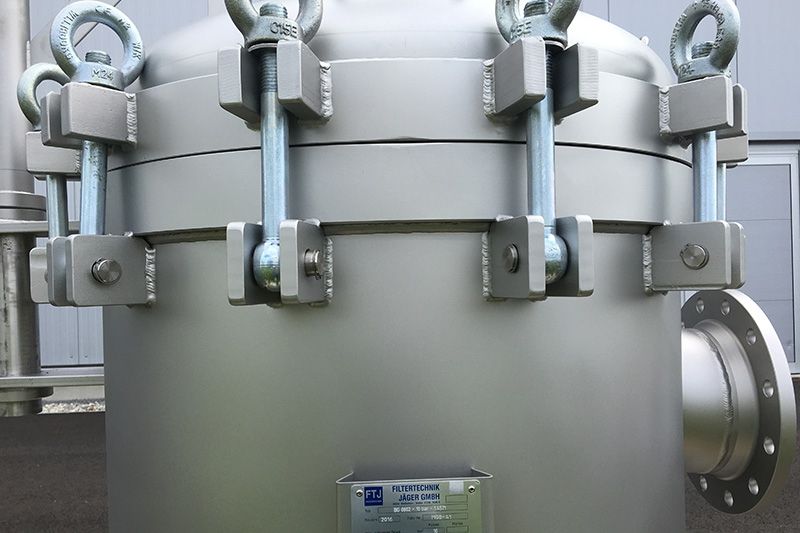

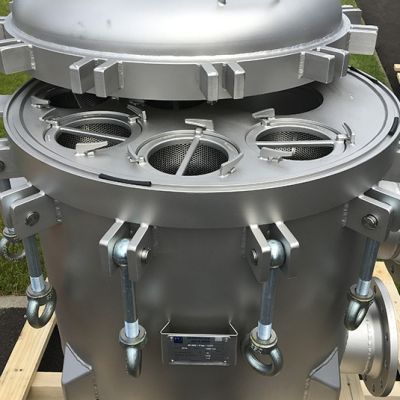

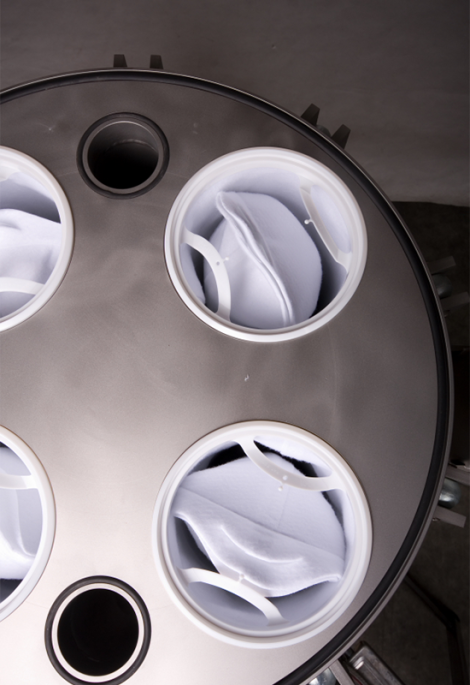

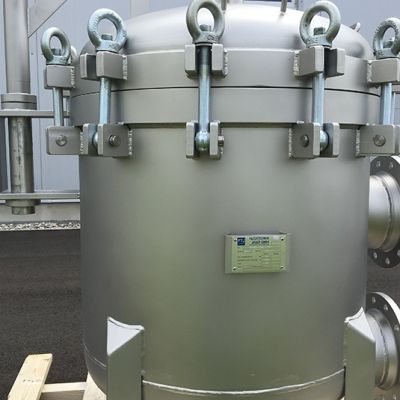

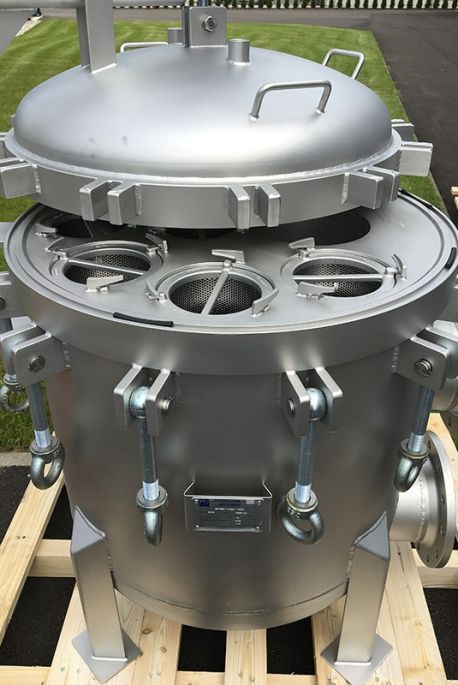

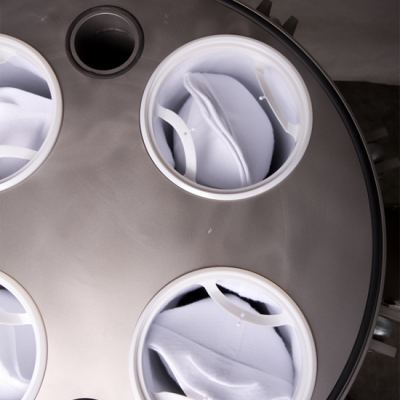

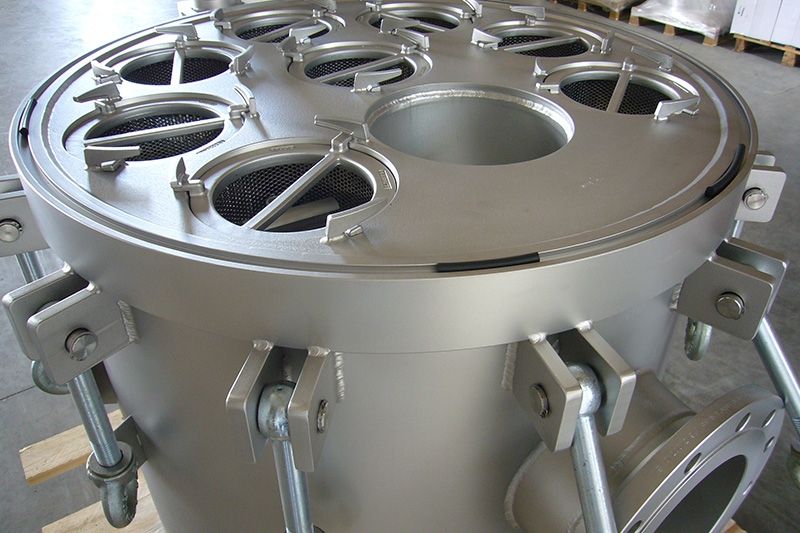

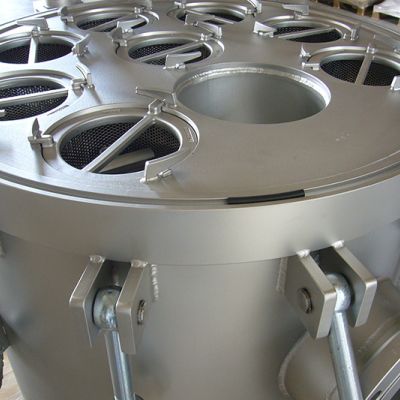

0802 BGK DN 200
| Housing: | 346Ti (1.4571) |
| Restrainer basket: | 346Ti (1.4571) |
| Seals: | FPM |
| Inlet / Outlet: | Flange DN 200/PN16 |
| Flow rate: | 320 m³/h |
| Operating pressure: | 10 bar |
| Operating temperature: | 120° C |
| Filter area: | 7.2 m² |
| Volume: | 440 L |
The following questions help us find out as much as possible about your needs and define your enquiry.

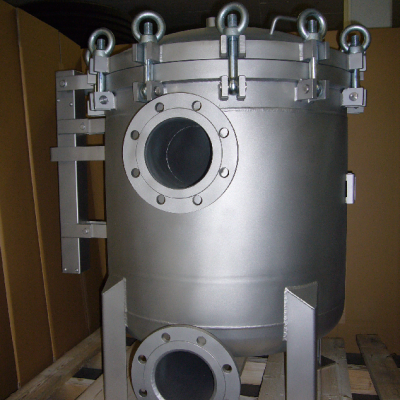

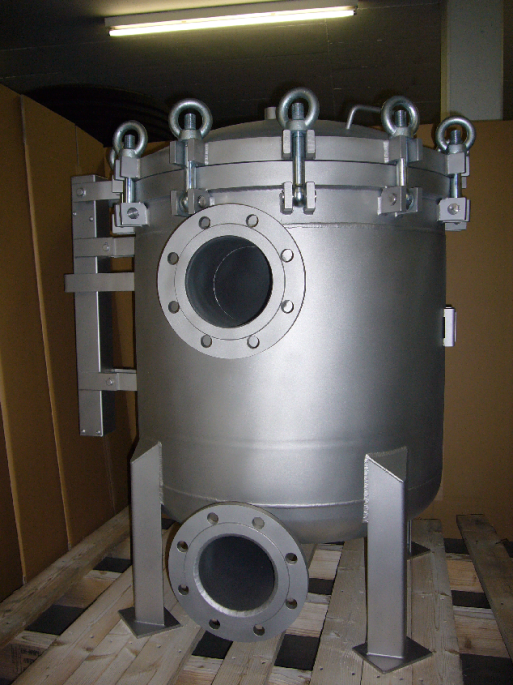

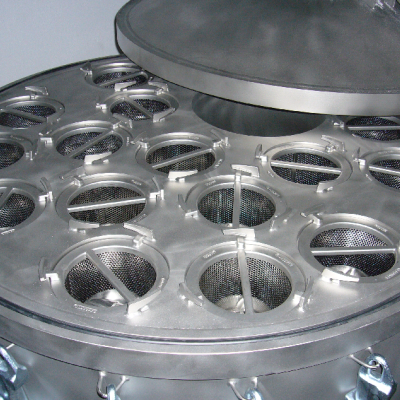

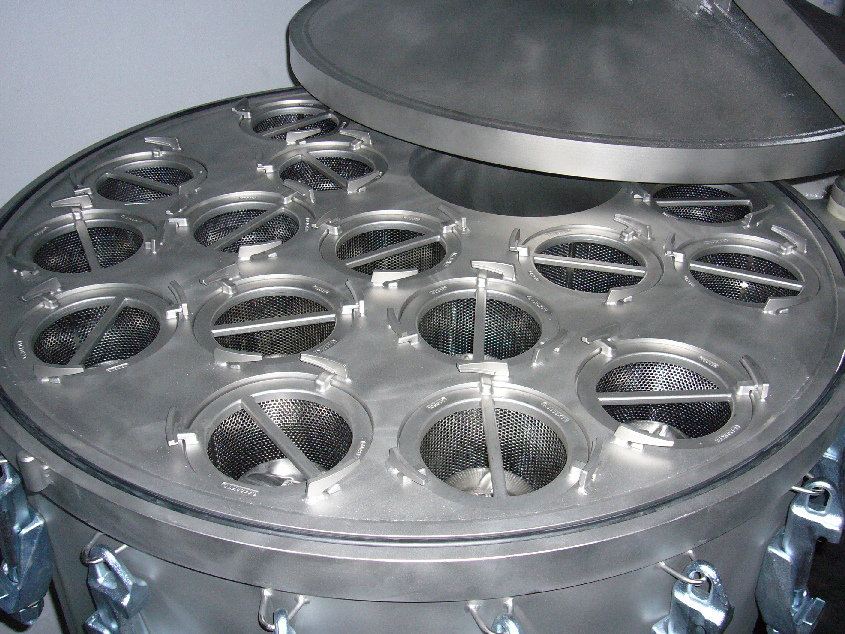

1602 BGK DN 300
| Housing: | 316Ti (1.4571) |
| Restrainer basket: | 316Ti (1.4571) |
| Seals: | FPM |
| Inlet / Outlet: | Flange DN 300/PN16 |
| Surface: | Glass bead blastet |
| Flow rate: | 650 m³/h |
| Operating pressure: | 10 bar |
| Operating temperature: | 120° C |
| Filter area: | 14.4 m² |
| Volume: | 950 L |
