Cartridge filter housing

For your specific requirements we customize the filter cartridge housings made of stainless steel, brass or chromed exactly.

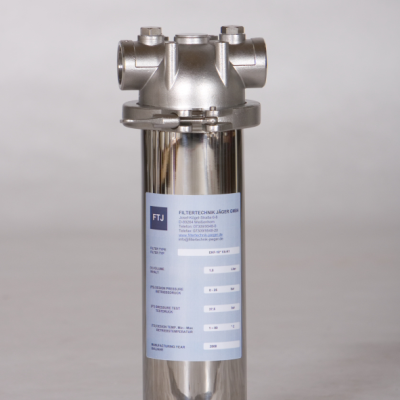

SINGLE CARTRIDGE FILTER HOUSINGS SS

The single cartridge housings of Filtertechnik Jäger are customized to your specifications and are made of stainless steel.

Material: 304, 316 L or 316Ti
V-Clamp: brass, chromed or stainless steel
Seals: NBR or FPM
Connections: R ¾“ oder R 1“ BSP
Vent: RP ¼“
Flow rate: 1 - 5 m³/h
Operating pressure: max. 20 bar
Operating temperature: max. 150° C
Filter cartridge length: 9 ¾“, 10“, 20“ und 30“

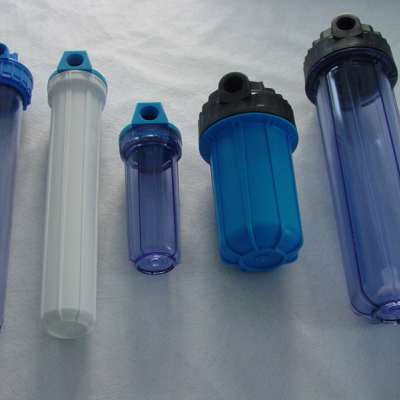

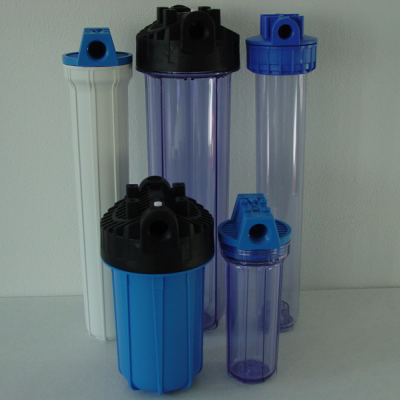

SINGLE CARTRIDGE HOUSINGS PP

Filtertechnik Jäger offers you custom-made single cartridge housings made of polypropylene.

Material: Polypropylene
Seals: NBR
Connections: R ½“, ¾“ oder R 1“ BSP
Vent: RP ¼“
Flow rate: 4 - 5 m³/h
Operating pressure: max. 8.6 bar
Operating temperature: max. 52° C
Vent: with /without
Fixing: SS-bracket with screws
Dimensions: single length double length
Housing: 311 x 130 mm 568 x 130 mm
Filter cartridge length: 9 ¾“, 10“ 20“
Filter area: 0.05 m² 0.1 m²

Alternativ können alle Gehäuse auch mit Metallgewebepatronen aus Edelstahl ausgerüstet werden.

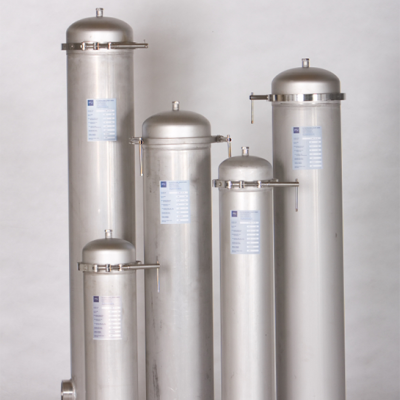

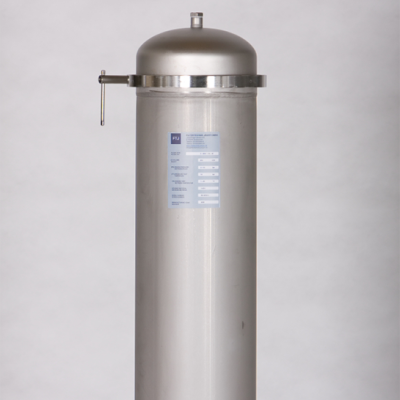

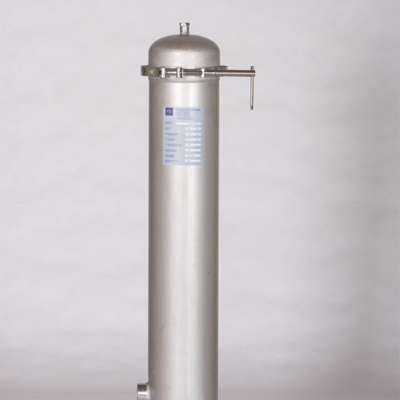

MULTI CARTRIDGE HOUSINGS SS

Filtertechnik Jäger offers you custom-made multi cartridge housings made of stainless steel.

Material: Version: 304 inside and outside pickled
Closure: V-clamp
Seal: NBR (FPM possible)
Inlet / Outlet N1/N2: Rp 2“ BSP; Rp 3“ BSP (7 MKF)
Drain: Rp ½“
Ait vent N3: Rp ¼“
Filter cartridge length: 9¾“ 20“ 30“ 40“ 45“
Max. flow rate: 10 m³/h 20 m³/h 25 m³/h 30 m³/h 35 m³/h
Filter area 6MKF/7MKF 0.3 m² 0.6 m² 0.9 m² 1.2 m² 1.6 m²
Pressure/temperature: 10 bar/80° C

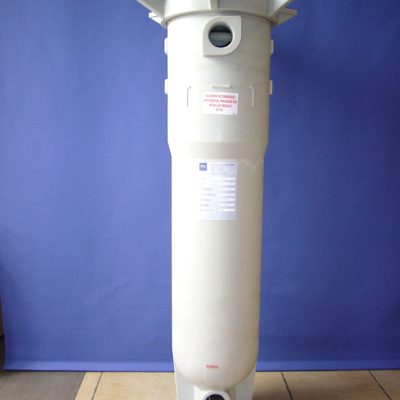

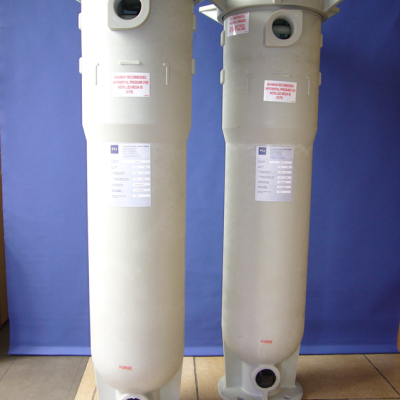

MULTI CARTRIDGE HOUSINGS PP

Filtertechnik Jäger offers you custom-made multi cartridge housings made of polypropylene.

Material: Version 1: Polypropylene glass fibre reinforced
  Version 2: PVDF
Seal: FPM
Connections: Rp 2“ BSP (optional with flange DN 50)
Air vent: Rp ¼“ BSP
Flow rate: max. 25 m³/h
Pressure / temperature: 10 bar/21° C 9 bar/40° C 8 bar/60° C 5 bar/80° C
Filter area: 0.50 m²
Weight: ca. 25 kg
Filter housing volume: 36 L
