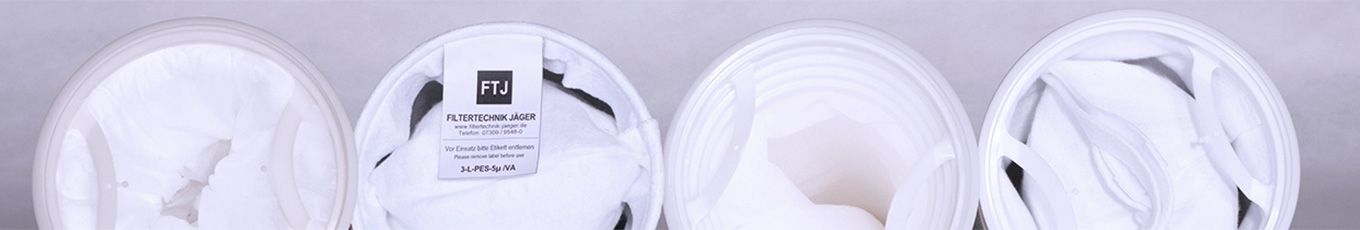

Filter bags

We adapt our filter bags exactly to your specific requirements and thus create the highest process reliability for you. FTJ filter bags are available in sewn and welded design, with plastic collar and stainless steel ring. We offer standard filter bags, high performance filter bags and absolute rated filter bags.



STANDARD FILTER BAGS PES/PP

  • Standard filter bags made of needle felt in PP or PES
  • Optionally with plastic collar or stainless steel ring or galvanized ring

Technical Data

Standard filter bag
Size / type
0 X0 1 2
Length [mm]
230 380 390 810
Diameter [mm] 100 100 180 180
Filter area [m²] nominal 0,09 0,16 0,24 0,48
Bag volume [l] 1,3 2,5 9,9 19,8
Rec. differential pressure [bar] ≤ 0,1 ≤ 0,1 ≤ 0,1 ≤ 0,1
Allowed differential pressure [bar] 2,0 2,0 1,5 1,5
Theoretical max. flow rate * [m³/h] 6 12 16 30

STANDARD FILTER BAGS NMO/PMO

  • Made of monofilament fabric (surface filtration)
  • Optionally with plastic collar or stainless steel ring

HIGH PERFORMANCE FILTER BAGS PES/PP

  • High performance filter bag made of needle felt in PP or PES (welded/sewn version)
  • Longer lifetime
  • Higher dirt absorption capacity
  • Fully welded seams
  • Special bag filter seal
  • Full compatibility with the entire FTJ filter housing program
  • Production according to the highest quality standards

Technical data

High performance filter bags
Size / tpye
1 POXL
1 PEXL
2 POXL
2 PEXL
2L-PES
2L-NMO
3L-PES
3L-NMO
1-POXXL
1-PEXXL
2-POXXL
2-PEXXL
3-POXXL
Length [mm] 390 810 690 720 330 690 720
Diameter [mm] 180 180 180 180 180 180 180
Filter area [m²] nominal 0.24 0.48 0.85 0.95 0.55 0.85 0.95
Bag volume [l] 9.9 19.8 - - - - -
Rec. differential pressure [bar] ≤ 0.1 ≤ 0.1 ≤ 0.1 ≤ 0.1 ≤ 0.1 ≤ 0.1 ≤ 0.1
Allowed differential pressure [bar] 1.5 1.5 1.5 1.5 1.5 1.5 1.5
Theoretical max. flow rate * [m³/h] 16 30 35 40 20 45

ABSOLUTE FILTER BAGS PES/PP

  • Microfiber multi-layer filter bags with up to 3 m² filter area
  • Very high solids absorption capacity (up to approx. 2 kg)
  • Extremely long service life
  • Graded depth filtration (with integrated pre-filters)
  • Absolute rated separation of 98 - 99.99%
  • Guaranteed without fibre migration
  • Fully welded seams
  • 100% pure polypropylene
  • FDA listed, food registration
  • According to EC Directive 90/128 / EEC

Technical data

<td12-22

Absolute filter bags
Size / type
1AL 2AL AE AB AC AXL
Length [mm] 390 810 810 810 810 810
Diameter [mm] 180 180 180 180 180 180
Filter area [m²] nominal 0.24 0.48 0.48 3 3 3
Bag volume [l] - - - - - -
Rec. Differential pressure [bar] ≤ 0.1 ≤ 0.1 ≤ 0.1 ≤ 0.1 ≤ 0.1 ≤ 0.1
Allowed differential pressure [bar] 1.2 1.2 1.2 1.2 1.2 1.2
Theoretical max. flow rate * [m³/h] 6-10 12-20 12-22 12-22 7-20

BROCHURE FILTER BAGS

Further information about our Filter bags is provided in this brochure.
