Filter Cartridges

Our wide selection of different types of filter cartridges offers you the greatest possible flexibility. FTJ filter cartridges have maximum dirt holding capacity and are suitable for large volume flows as well as complex filtration processes.

PP WOUND FILTER CARTRIDGES

Wound filter-cartridges Type: PP, PPW (washed)

Wound filter-cartridges are depth-filter-elements, produced in a special way of winding. Newest winding-machines guarantee a constant and high quality for filter-cartridges up to 60”.

The PPW filter-element is wound with a special washed yarn. Washed yarn is free of wetting agents and prevents foaming.

Applications: Packing unit:
Galvanic baths 9 ¾“ – 10“ = 1 PU 60 piece
Film-developing 19 ½“ – 30“ = 1 PU 30 piece
Process water 40“ = 1 PU 15 piece
Wastewater, etc.
Media: Polypropylene (washed), Polyester, Nylon, Glass fibre, Cotton
Core: Polypropylene, Stainless Steel (304), Galvanised steel
Operating temperature: Max. 80° C, Steel core/other yarns: 160°C – 400°C
Outside diameter: 62 mm or 114 mm
Inside diameter: 27 mm
Starting ΔP: 0.1 bar
Max. ΔP: 2.5 bar
Length (inch):
5 10 19½ 20 29¼ 30 39 40 60
Length (mm): 127 248 254 495 508 744 762 992 1016 1524
Micron rating ((µm): 1 3 5 10 25 50 75 100 150 200
Flow rare: l/min./ 10“: 7 13 21 25 30 35 35 35 35 35

NT FILTER CARTRIDGES

Nominal rated filter cartridges melt blown Type: NT

  • Thermally bonded microfibers made of pure polypropylene
  • Free of wetting agents
  • Depth-filters for the filtration of drinking water, galvanic baths,
    chemicals, cooling lubricants and emulsions.
  • Complies with FDA regulations.
Material: Pure Polypropylene free of tensides
Outside diameter 63 mm or 114 mm
Inside diameter:
27.5 mm
Length (inch):
10 19½ 20 29¼ 30 39 40 45
Length (mm): 248 254 495 508 743 762 991 1016 1143
Micron rating (µm): 0.8 1 3 5 10 20 30 50 75
Flow rate:/l/min./10” 5 7 9 15 18 20 22 25 25
Operating temperature: 80° C
Starting ΔP: 0.05 bar
Max. ΔP: 2.0 bar
Adapter: DOE, P3, P7, P8
Packing unit:   9 ¾“ – 10“ = 1 PU 40 pieces
19 ½“ – 40“ = 1 PU 20 pieces

AT FILTER CARTRIDGES

Absolute rated filter cartridges Type: AT

Material: 100% pure polypropylene (melt blown), without binding agents, PP core
Seal media: FPM, NBR, EPDM, Silicone
Outside diameter: 64 mm
Inside diameter: 27 mm
Length (inch): 10 20 30 40
Length (mm): 254 508 762 1016
Operating temperature: 80° C (max. 121° C for sterilisation)
Micron rating (µm):
0.5 1 3 5 10 20 30 50 75 90 120
Flow rate: m³/h/10“: 0.9 1.0 1.1 1.4 1.6 2.0 2.6 3.0 3.0 3.0 3.0

Starting ΔP: 0.1 bar - 1.0 bar
Version: DOE with foamed flat gaskets G
SOE 226 – O-rings / bayonet / spear P7
SOE 222 – O-rings / flat P3
SOE 222 – O-rings / spear P8
Packing unit:   9 ¾“ – 10“ = 1 PU 40 pieces
19 ½“ – 40“ = 1 PU 20 pieces

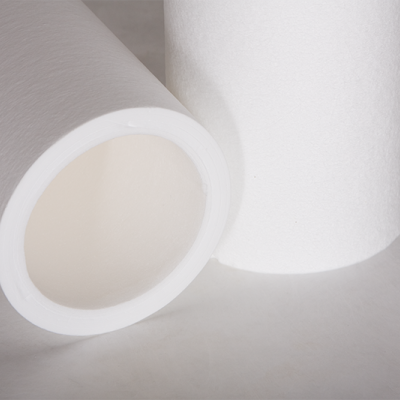

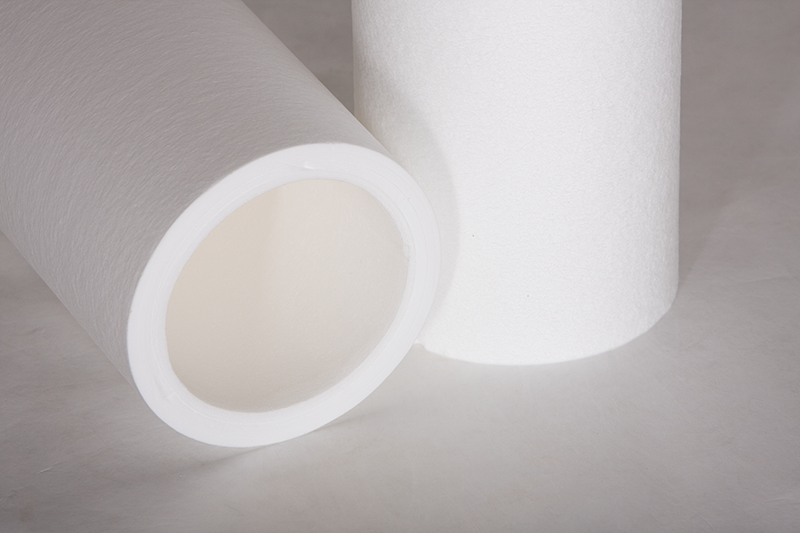

AT GENIUS

Absolute rated filter cartridges Type: AT Genius / CLA Genius-FTJ

Material: 100 % pure polypropylene (microfibers)
Construction: DOE, without support core
Operating temperature: 80° C
Micron rating (µm): 1 5 10 20 40 70 90
Flow rate: m³/h/ 10" 15 23 30 37 40 40 40

Starting ΔP: 0.15 bar
Max. ΔP: 4 bar

ATN FILTER CARTRIDGES

Absolute rated filter cartridges Type: ATN

Material: 100% pure polyamide (Nylon), without binding agents, PA core
Seal media: FPM, NBR, EPDM, Silicone
Outside diameter: 64 mm
Inside diameter: 27 mm
Length (inch): 10 20 30 40
Length (mm): 254 508 762 1016
Operating temperature: max. 150° C with max. 3.0 bar
Separation rate 99,00 % (µm) 1 3 7 14 20 30 50 70 90 150
Separation rate 99,98 % (µm) 3 5 10 20 30 40 70 90 120 200
Flow rate: m³/h / 10” 1.1 1.4 1.6 2.0 2.5 3.0 3.0 3.0 3.0 3.0
Starting ΔP: 0.1 bar - 1.0 bar
Version: DOE with foamed flat gaskets G
SOE 226 – O-rings / bayonets / spear P7
SOE 222 – O-rings / flat P3
SOE 222 – O-rings / spear P8
Packing unit:   9 ¾“ – 10“ = 1 PU 40 pieces
19 ½“ – 40“ = 1 PU 20 pieces

PPA FILTER CARTRIDGES

Pleated Filter Cartridge Type: PPA



  • Pleated PP-Membrane or nonwoven
  • PP support nonwoven
  • Hard cage
  • Core + end caps made of 100 % polypropylene, meet requirements of FDA guidelines.
  • Thermal welding processes seal all components
  • No adhesives or extractable materials

Version:

  • DOE
  • SOE 226 – O-Ring / Bayonet / Spear P7
  • SOE 222 – O-Ring / Flat P3
  • SOE 222 – O-Ring / Spear P8
Filter surface:
0.4 – 0.6 m²
Deposition rate: 99.99 % Beta ratio 5000
Seals: Buna, EPDM, Viton, Silicone

Outside diameter / Inside Diameter:

66 mm/27 mm
Length in mm/ inch: 248/9 ¾ 254/10 508/20 762/30 1016/40
Operating temperature 80° C
Sterilisation: Applies to single open end cartridges only. For all steaming and hot water applications, the glass filled end cap option must be used (only PP).
ein Edelstahlinsert oder die glasfaserverstärkte Version benutzt werden (nur PP).
Steam: 121° C  for 15 min. (20 cycles)
Hot water:
90° C   for 30 min. (0.2 barΔPmax.)
Micron rating ( µm): 0.2 0.5 1 3 5 10 20 35 50 70 90

Flow rate in L/min per 10“
(Referring to all micron ratings):

Start.-diff.-pressure 0,03 bar: 5 15 20 35 35 40 40 40 40 40 40
Start.-diff.-pressure 0,01 bar: 2 5 7 15 20 35 40 40 40 40 40
Max. diff.-pressure at 80°C: 0.5 bar

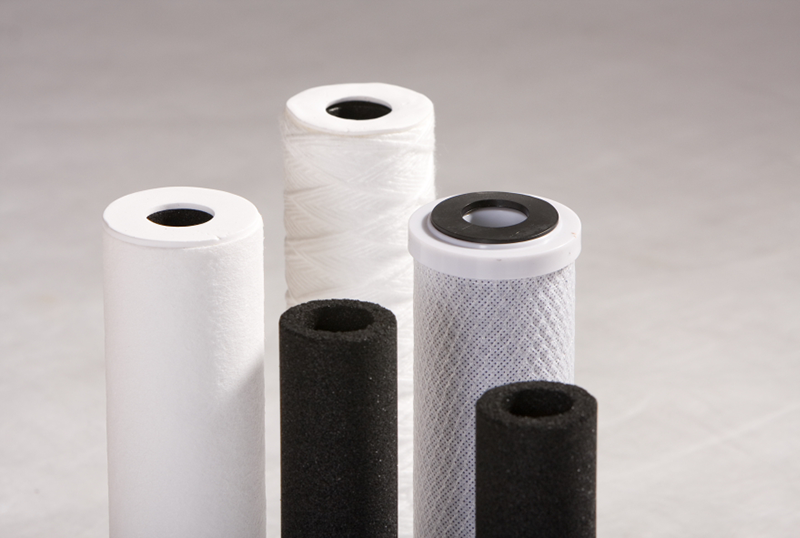

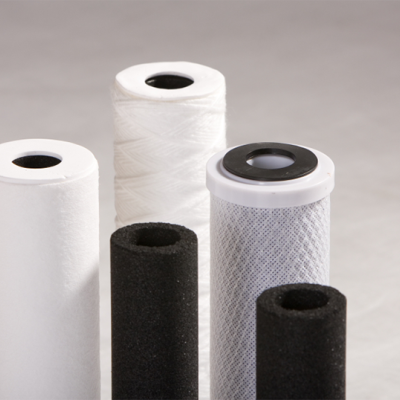

ACTIVATED CARBON FILTER CARTRIDGES

Activated Carbon Filter Cartridges

  • Pressed and extruded micro activated carbon core
  • Prevent the release of carbon particles into the filtrate
  • Excellent adsorption characteristics for chlorine and organic compounds

Type AKG G

Outside Diameter
65 mm
Inside Diameter
27 mm
Length in inch:
5“ 9¾“ 10“ 20“ 30“
Length in mm: 127 248 254 508 762
Filter fineness (µm): 5, 10
Max. operating temperature: 52° C
Max. flow rate 8 l/min. per 10“ length
Max. differential pressure: 2.5 bar
Activated carbon part 5“ 95 g
9¾“ + 10“ 190 g
20“ 380 g
30“ 570 g

Version:                           Polypropylene yarn, washed



Type AKV

Outside Diameter
71 mm
Inside Diameter
27 mm
Length in inch:
4 7/8“ 9¾“ 20“ 30“
Length in mm: 124 248 508 762
Filter fineness (µm): 1, 5, 10
Max. operating temperature: 52° C
Max. flow rate 8 l/min. per 10“ length
Max. differential pressure: 7 bar
Activated carbon part 4 7/8“ 180 g
9¾“ 360 g
20“ 720 g
30“ 1080 g

Version:                          Polypropylene fleece and polypropylene mesh

METAL MESH FILTER CARTRIDGE

Stainless steel cartridge Type: MG

Material: AISI 304 (stainless steel mesh and perforated metal plate support core)
Outside Diameter
65 mm
Length in inch: 5“ to 40“
Fineness: 3 µm to 1000 µm
Operating temperature: max. 300° C
Start.- diff.- pressure: 0.1 bar
Max. diff.- Pressure: 2.5 bar
Version: DOE (double open end)
SOE with adapter and radial seal

BROCHURE FILTER CARTRIDGES

Further information about our Filter Cartridges is provided in this brochure.
